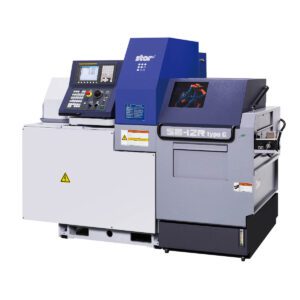

Star SB-12R type G
EDUT
The machining spectrum was further expanded by flexible selection of the power-driven tools on the tool post of the SB-12/20R G. The main spindle is fitted by power-driven front drilling unit and saw unit as well as polygon unit and thread whirling unit. The use of power-driven tools on the rear side are now standard.
- FANUC 0i-TF control system
- C-axis control as standard on main and sub spindle
- completely independent backworking
- changeable from sliding head to fixed headstock lathe
- movable control panel
- low space requirement
- ideal replacement for cam-controlled lathes

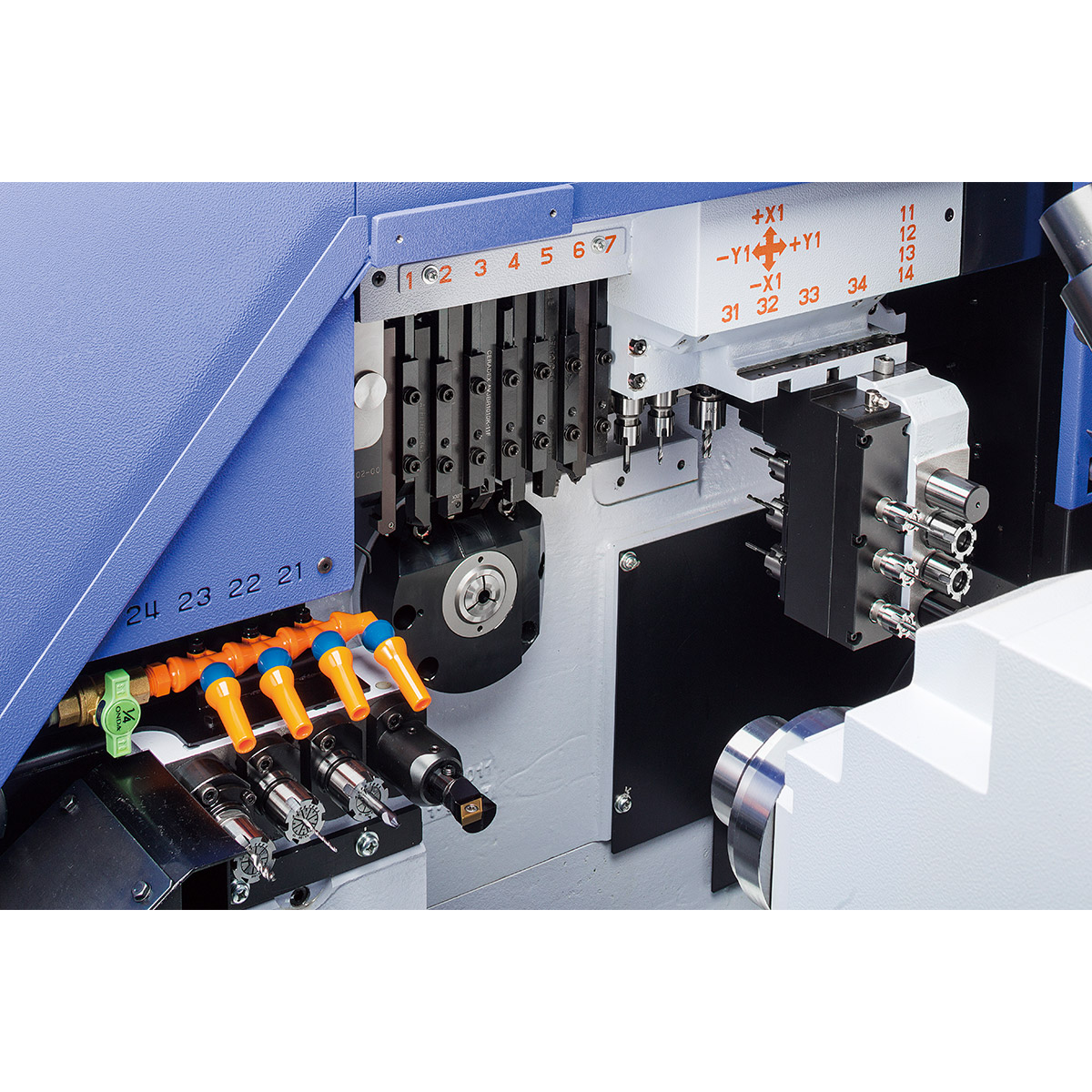

TYÖKALUSTUS
- 6 (7) turning tools

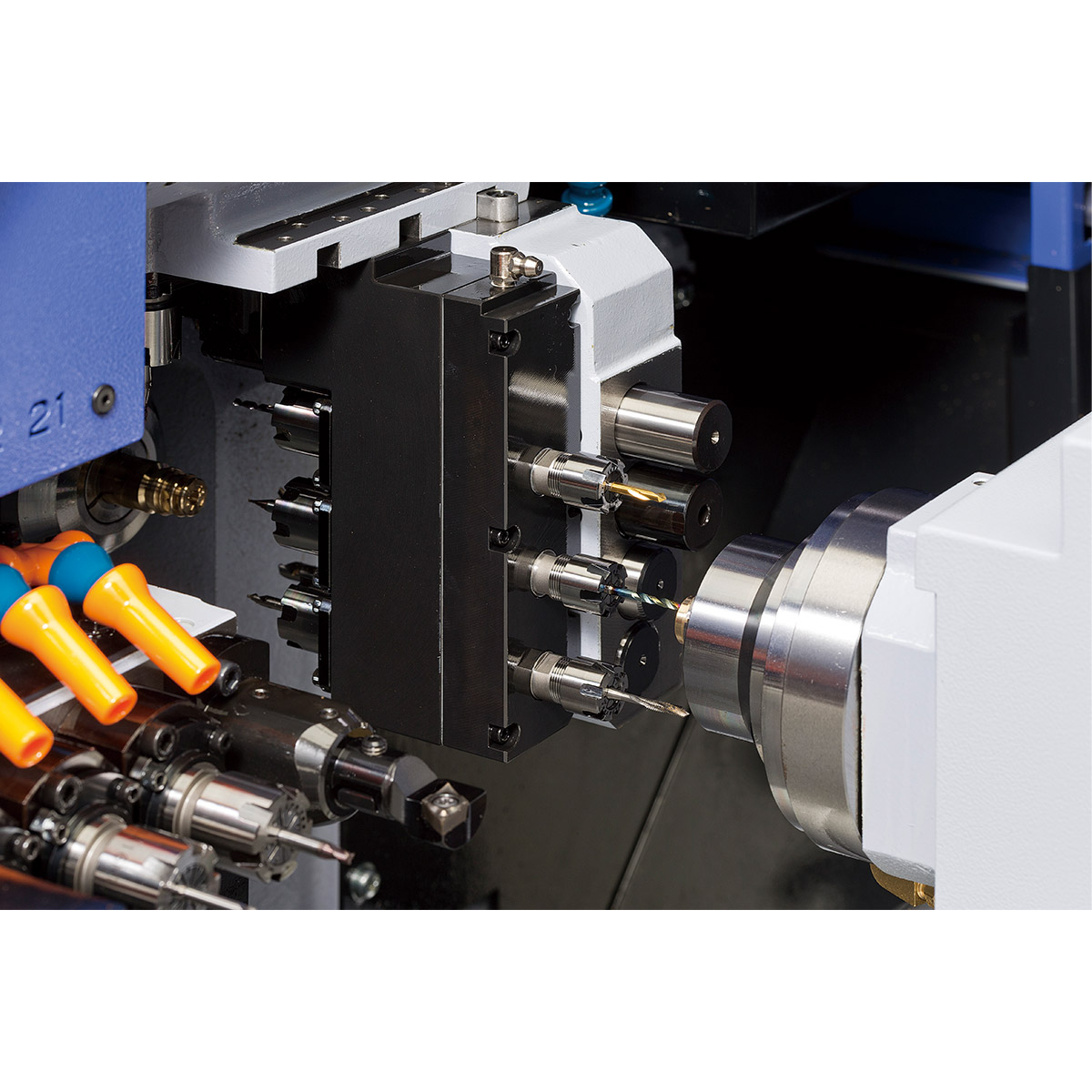

- front and rear side each with 4 drilling tools

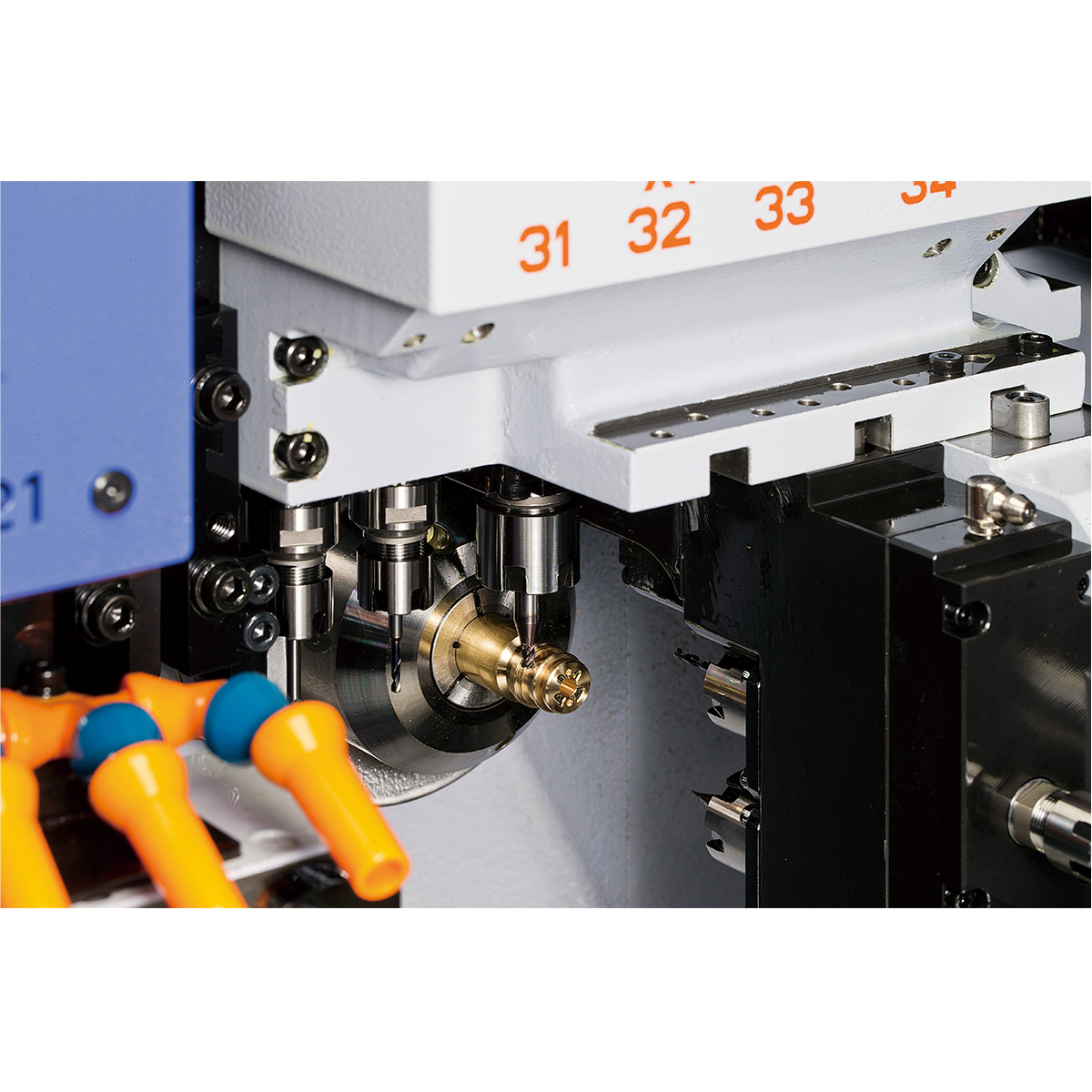

- 4 + α power-driven tools on the tool post
- 4 + α power-driven tools for backworking

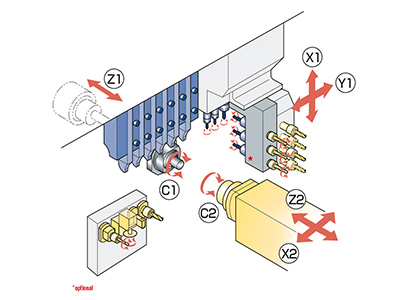

- 7 axes
Tekniset tiedot |
|
| Max. sorvaushalkaisija |
Ø 12 mm |
| Max. sorvauspituus | 205 mm / 30 mm |
| Akseleiden määrä | 7 |
| Karayksikkö | Z1 / C1 axis |
| Työkaluluisti | X1 / Y1 axis |
| Karamoottori | 3.7 kW |
| Karanopeus | 15,000 rpm |
| Työkalut | |
| Sorvaavat työkalut | 6 työkalua ((Ø 12 mm) |
| Poraustyökalut | 4 työkalua (ER16) |
| Pyörivät työkalut | 4 (5) työkalut |
| Pyörimisnopeus | 10,000 rpm |
Vastakara |
|
| Vastakara | X2 / Z2 / C2 akselit |
| Max. kiinnityshalkaisija | 12 mm |
| Karateho | 1,1 kW |
| Max. kierrosnopeus | 12,000 rpm |
Takatyöstö |
|
| Poraustyökalut | 4 työkalua (Ø 22 mm holkki) |
| Pyörivät työkalut | 4 työkalua (ER16) |
| Pyörimisnopeus | 8,000 rpm |
