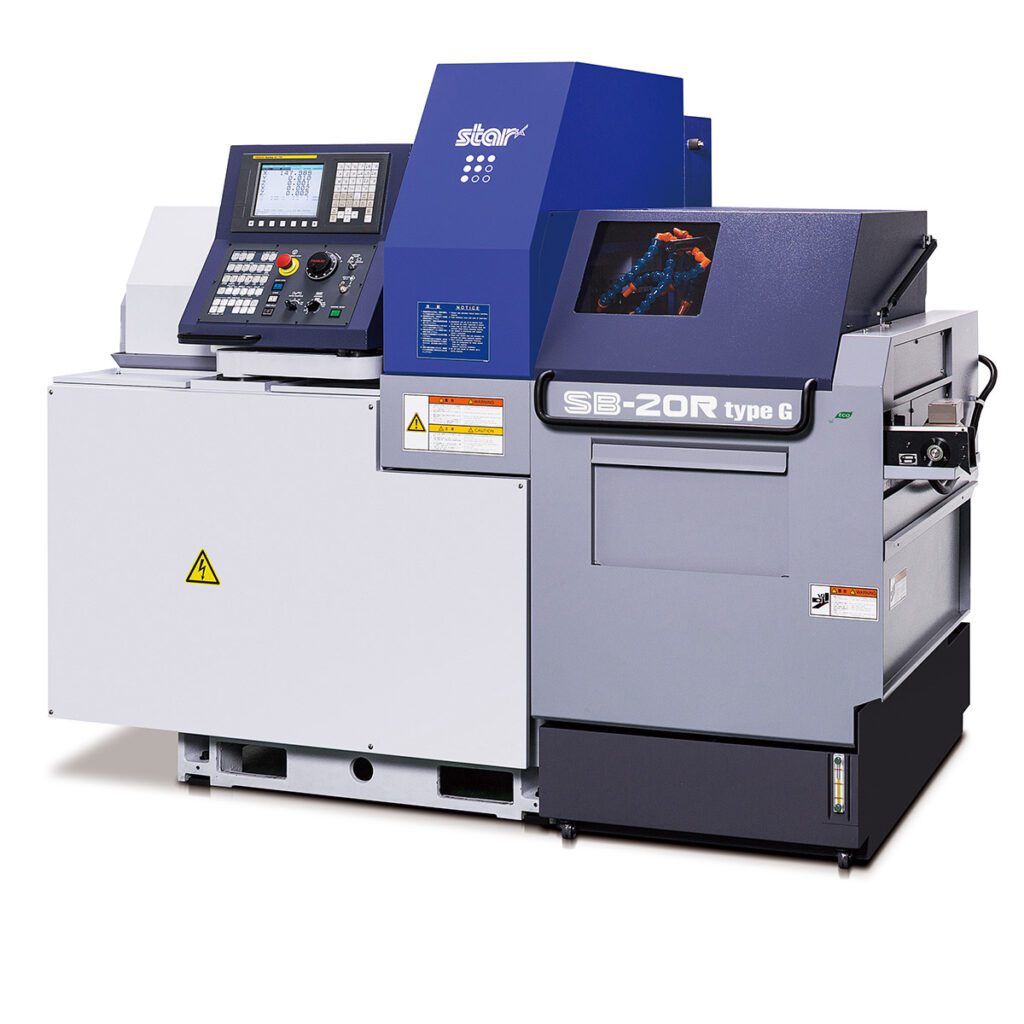

The SB-20R is a further development of the SB series and is an attractive cost-effective solution.
The range of machining possibilities of the SB-20R is extended through power-driven tools on the rear side.
The sliding head automatic lathe can also be converted to be a fixed headstock lathe to therefore reduce costs for conventional turning.
- FANUC 0i-TF control system
- C-axis control as standard on main and sub spindle
- completely independent backworking
- 4 + α power-driven tools for backworking
- changeable from sliding head to fixed headstock lathe
- movable control panel
- low space requirement
- ideal replacement for cam-controlled lathes

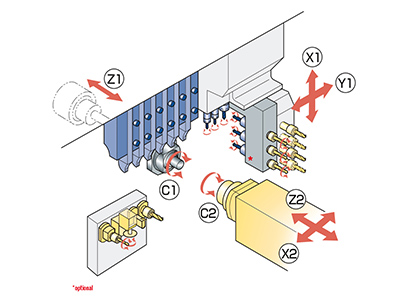

TYÖKALUSTUS
- 6 (7) turning tools
- front and rear side each with 4 drilling tools
- 4 (5) power-driven tools on the tool post
- 4 + α power-driven tools for backworking
- 7 axes
Tekniset tiedot |
|
| Max. sorvaushalkaisija |
Ø 20 mm / 23 mm |
| Max. sorvauspituus | 205 mm / 50 mm |
| Akseleiden määrä | 7 |
| Karayksikkö | Z1 / C1 axis |
| Työkaluluisti | X1 / Y1 axis |
| Karamoottori | 3.7 kW |
| Karanopeus | 10,000 rpm |
| Työkalut | |
| Sorvaustyökalut | 6 työkalua (Ø 12 mm) |
| Pyörivät työkalut | 4 työkalua (ER16) |
| 4 (5) työkalua | |
| Pyörimisnopeus | 8,000 rpm |
Vastakara |
|
| Vastakara | X2 / Z2 / C2 akselit |
| Max. kiinnityshalkaisija | 20 mm / 23 mm (optio) |
| Karateho | 1,1 kW |
| Max. kierrosnopeus | 9,000 rpm |
Takatyöstö |
|
| Pyörivät työkalut | 4 työkalua (Ø 22 mm holkki) |
| 4 työkalua (ER16) | |
| Pyörimisnopeus | 8,000 rpm |
