The ST-38 from STAR Micronics further develops the series of the complex KNC-32 and SV-32 machines.
A machine for highly complex parts, yet easy to program in the usual way with the FANUC control system with machining possibilities for parts up to a workpiece diameter of 38 mm.

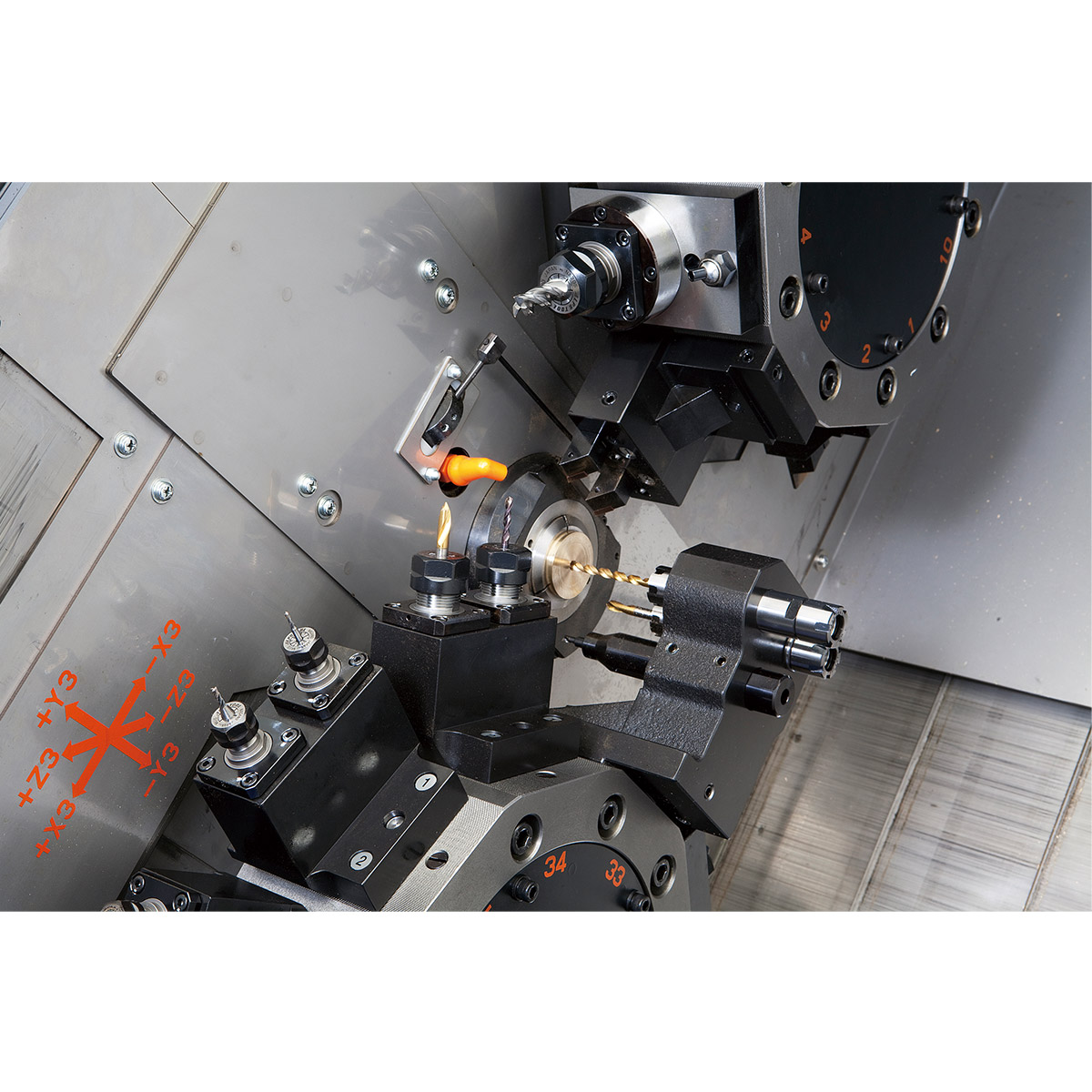

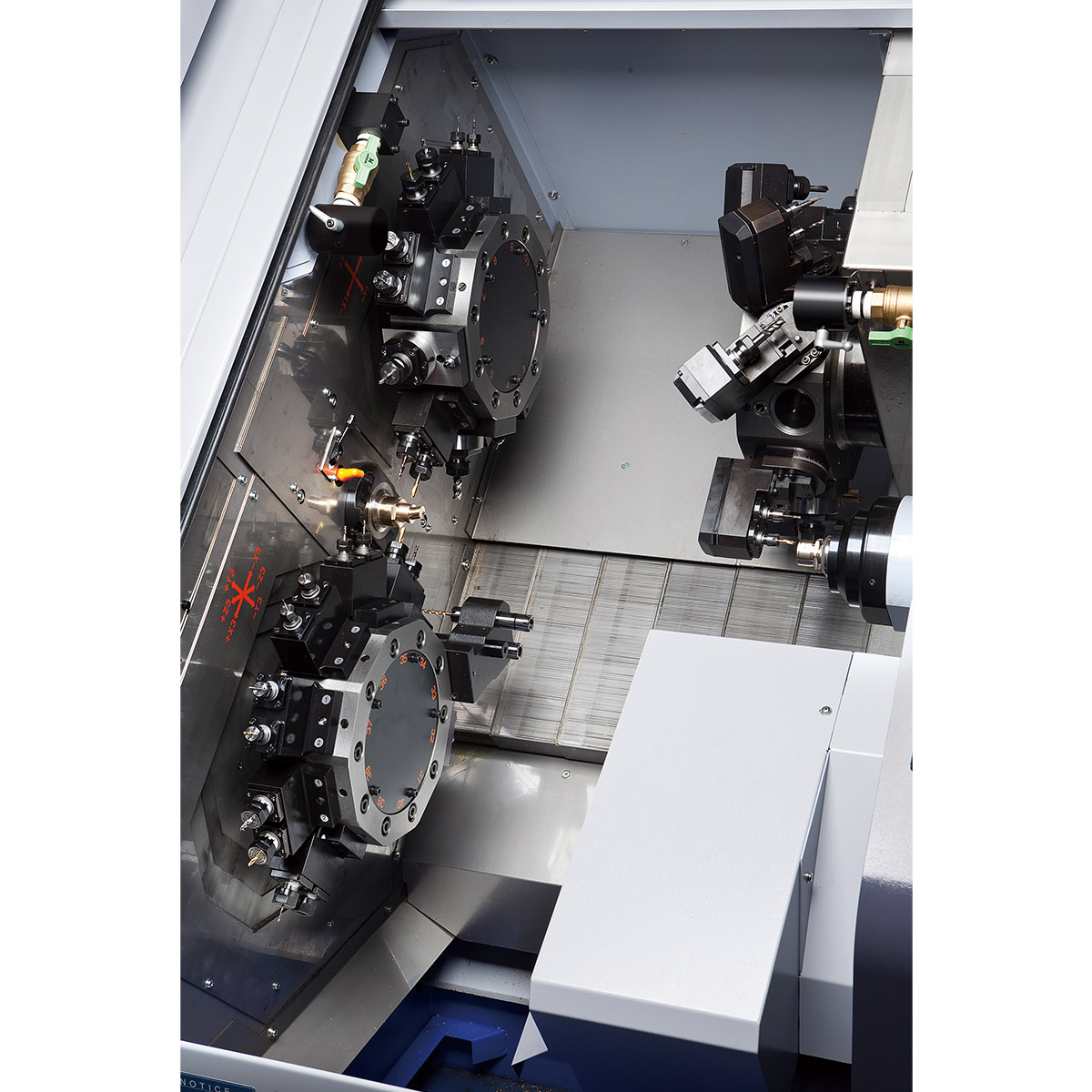

The 3 turrets allow for almost limitless machining flexibility. The ST-38 therefore enables the machining of turned parts which require up to 60 tools.
- FANUC 31i-B5 control system
- C-axis control as standard on main and sub spindle
- completely independent backworking
- movable control panel
- two tool carriers for simultaneous machining on the front side
- additional longitudinal axis on the tool carrier
- drive power turret 4.0 kW
- three independent tool systems
TYÖKALUSTUS
- 3 turrets each with 10 tools for excellent power-driven machining flexibility
- 30 + α power-driven tools for turning, drilling, cross drilling and backworking

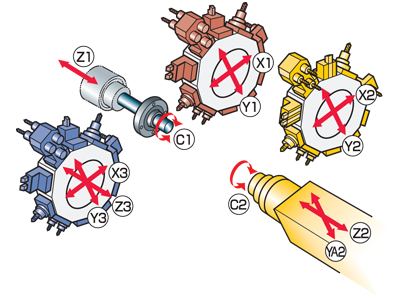

- 12 axes
Tekniset tiedot |
|
| Max. sorvaushalkaisija |
Ø 38 mm / 40 mm (optio) |
| Max. sorvauspituus | 350 mm |
| With magic guide bush | 320 mm |
| Akseleiden määrä | 12 |
| Karayksikkö | Z1 / C1 akselit |
| Revolveri 1 | X1 / Y1 akselit |
| Revolveri 3 | X1 / Y1 akselit |
| Karamoottori | 11 kW |
| Pääkaran nopeus | 7,000 rpm |
| Revolverin 1 ja 3 teho | 4 kW |
| Revolverin 1 ja 3 nopeus | 5,700 rpm |
Vastakara |
|
| Vastakara | Z2 / C2 / YA2 akselit |
| Revolveri 2 | X2 / Y2 |
| Max. kiinnityshalkaisija | 38 mm |
| Karateho | 7,5 kW |
| Max. kierrosnopeus | 7,000 rpm |
| Revolverin 2 teho | 4 kW |
| Revolverin 2 nopeus | 5.700 rpm |
