The new SW-12R II automatic CNC sliding headstock lathe was developed on the basis of the renowned SW-7 series. The machine is extremely attractive due to its compact size and universal use as either a sliding or fixed headstock lathe. The new SW-12 RII is characterised by high speeds on the main and sub spindle (15,000 rpm) and fully independent machining with 3 tool systems.
- FANUC 31i-B5 control system
- Spindle speeds on the main and sub spindle up to 15,000 rpm
- C axis control as standard on main and sub spindle
- Fully independent rear side
- Convertible from sliding headstock to fixed headstock lathe
- Movable control panel
- Two tool posts for simultaneous machining on the front side
- Low space requirement

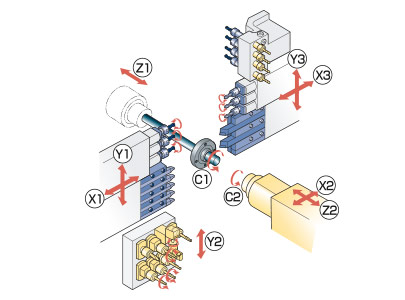

- Three independent tool systems

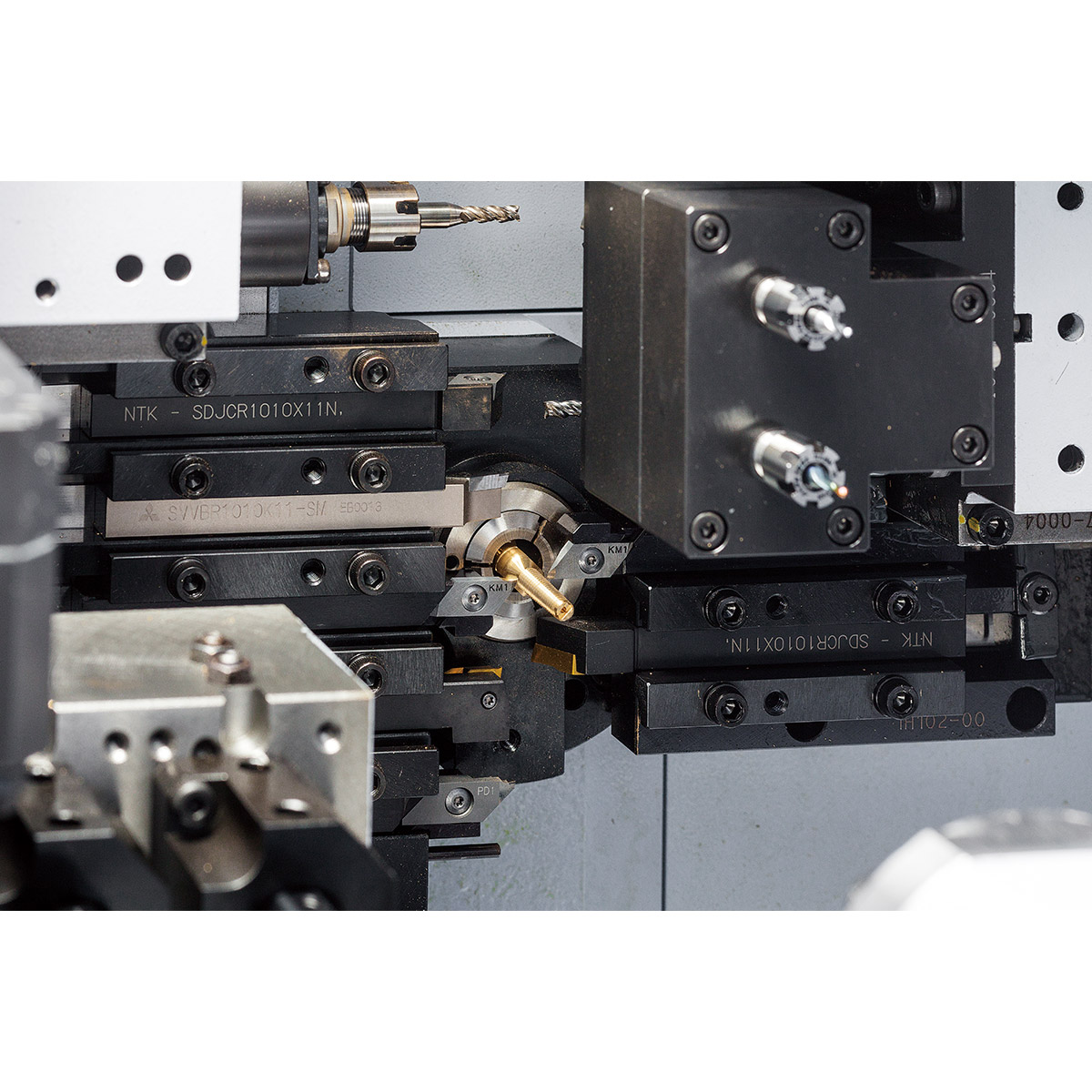

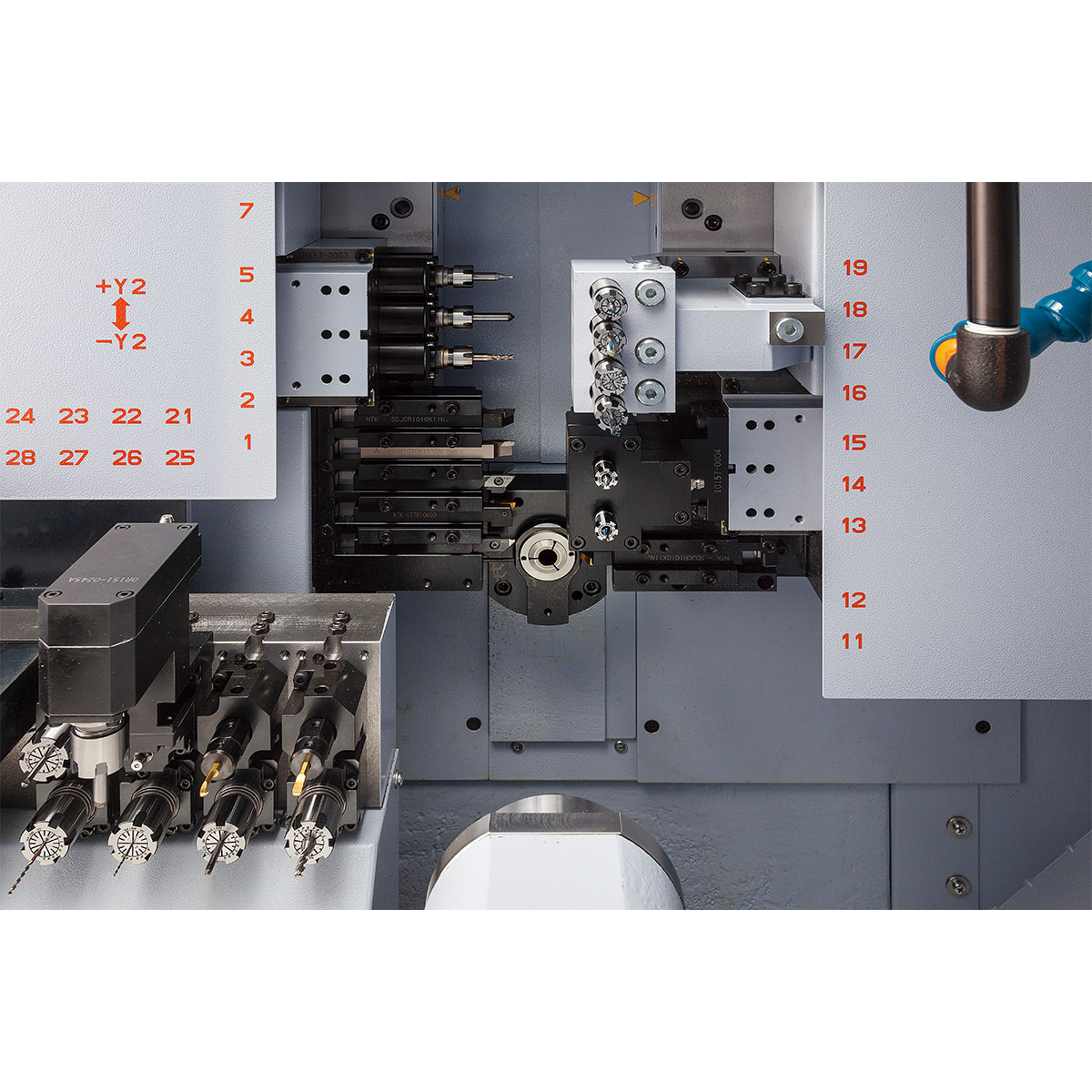

TYÖKALUSTUS
- 7 turning tools
- Each with 4 drilling tools (front and rear side)
- 6 + α power-driven tools on the tool post
- 8 + α power-driven tools for backworking
- 10 axes
Tekniset tiedot |
|
| Max. sorvaushalkaisija |
Ø 12 mm |
| Max. sorvauspituus | 135 mm / 30 mm |
| Akseleiden määrä | 10 |
| Työkaluluisti 1 | X1 / Y1 akselit |
| Työkaluluisti 2 | X3 / Y3 akselit |
| Karamoottori | 3,7 kW |
| Karanopeus | 15,000 rpm |
| Työkalut | |
| Sorvaustyökalut edessä | 7 työkalua (Ø 10 mm) |
| Pyörivät työkalut | 4 työkalua (ER11)
6 työkalua (ER11) |
| Pyörimisnopeus | 12,000 rpm |
Vastakara |
|
| Vastakara | X2 / Y2 / Z2 / C2 akselit |
| Max. kiinnityshalkaisija | 12 mm |
| Karateho | 3,7 kW |
| Max. kierrosnopeus | 15,000 rpm |
| Takatyöstön työkalut | |
| Pyörivät työkalut | 4 työkalua (Ø 16 mm holkki)
8 työkalua |
| Max. kierrosnopeus | 12,000 rpm |
