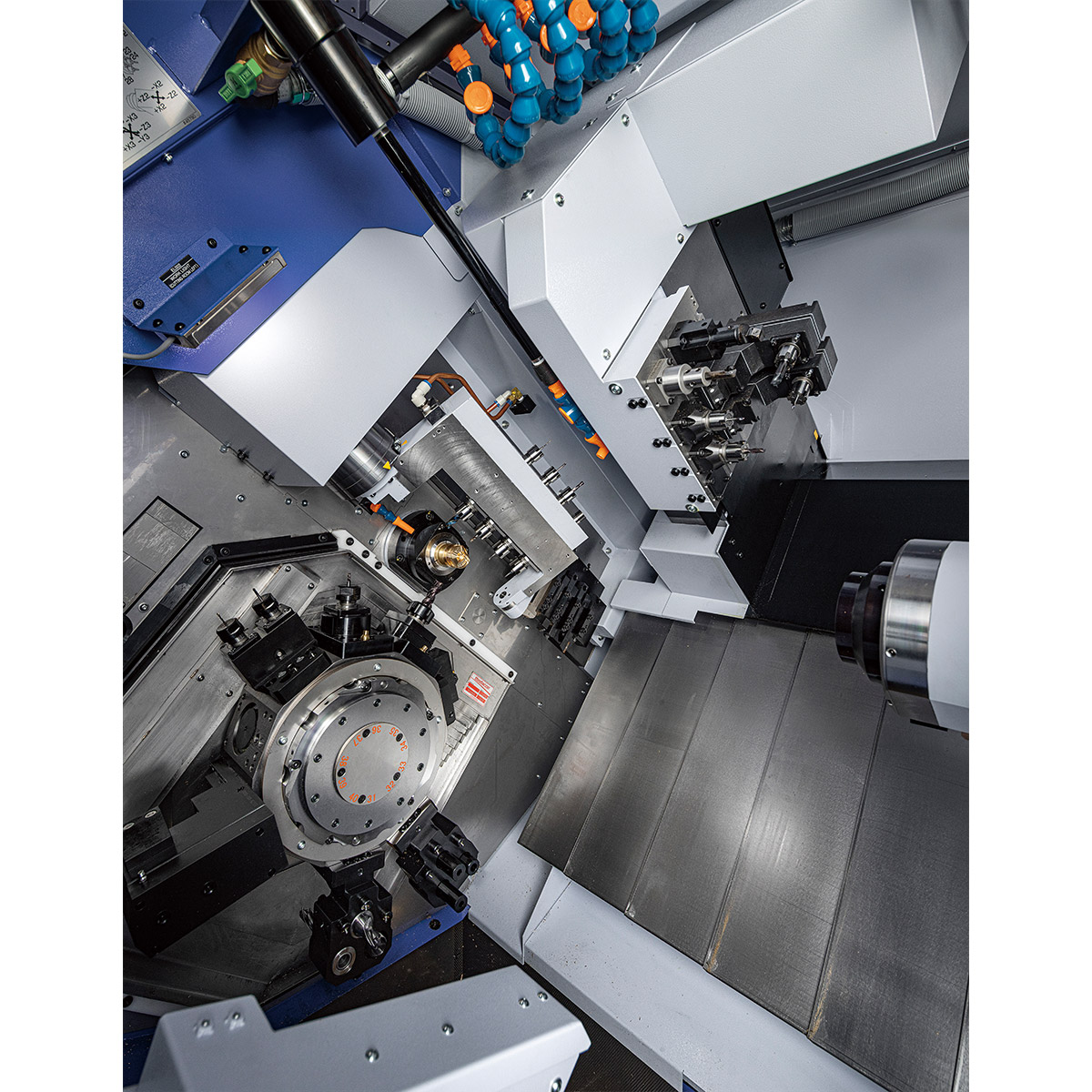

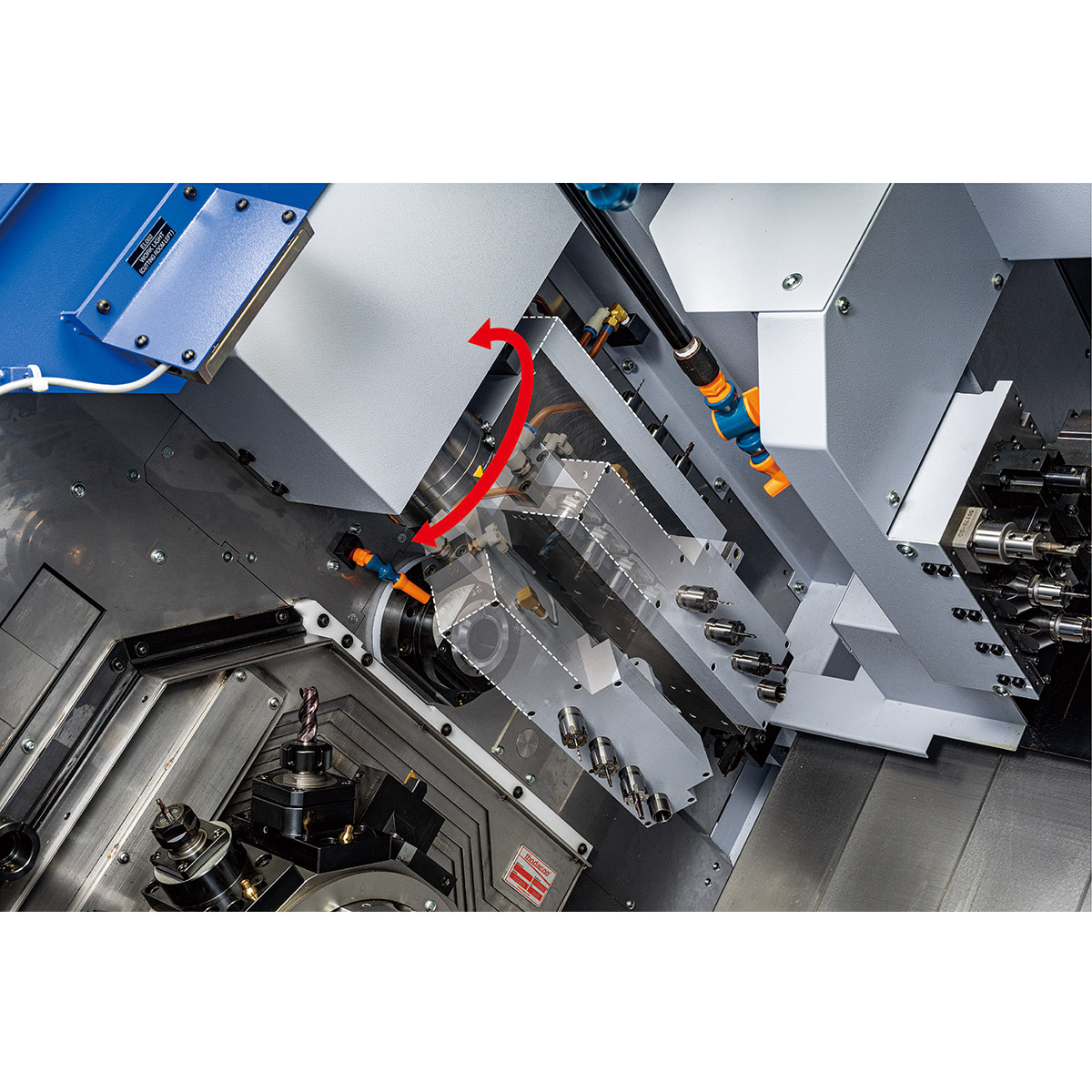

With the new star* SX-38 we have put several proven technologies under the hood. The flexible B-axis sits stable on the tool post and ensures the highest precision. The turret is designed with 10 stations for highly complex components and can be used on front and back side. The flexible back working on the turret or back block is of course possible without restriction of the front side machining.
- FANUC 31i-B5 control system
- Movable control panel
- C axis control as standard on main and sub spindle
- Convertible from sliding headstock to fixed headstock lathe
- Fully independent backworking
- Tool post and turrent for simultaneous machining on the front side
- Three independent tool systems
- Additional longitudinal axis on the turrent
- Drive power turret 4.0 kW
TYÖKALUSTUS
- 4 turning tools
- 4 power-driven tools on the tool post with B-axes drive (3 additional front tools possible)
- 10 + α power-driven tools for turning, drilling, croos drilling und backworking on the turrent
- 8 power-driven tools for backworking
- 12 axes
Tekniset tiedot |
|
| Max. sorvaushalkaisija |
Ø 38 mm / 40 mm (optio) |
| Max. sorvauspituus | 320 mm / 95 mm |
| Akseleiden määrä | 12 |
| Pikaliikkeet | 30 m/min |
| Työkaluluisti | X1 / Y1 / B1 axis |
| B-akseli | Vapaasti ohjelmoitavissa |
| Karamoottori | 11 kW |
| Karanopeus | 7,000 rpm |
| Työkalut | |
| Sorvaustyökalut edessä | 3 työkalua (Ø 16 mm)
1 työkalua (Ø 20 mm) |
| Pyörivät työkalut | 4 työkalua edessä
4 työkalua takana |
| Pyörimisnopeus | 6,000 rpm |
| Pyörimisteho | 3 kW |
| Työkalurevolveri | |
| Työkalupaikat | 10 työkalua (pyörivät työkalut) |
| Pyörimisnopeus | 5,700 rpm |
| Teho | 3 kW |
Vastakara |
|
| Akselit | 4 |
| Vastakara | X2 / Z2 / C2 axis |
| Y-akseli | Y2 |
| Max. kiinnityshalkaisija | 42 mm |
| Karateho | 11 kW |
| Pyörivät työkalut | 8 työkalua |
| Max. kierrosnopeus | 5,000 rpm |
